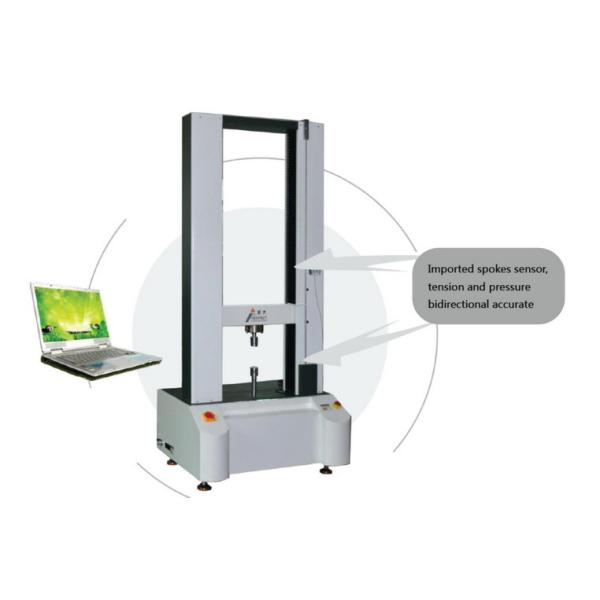

Double column with Computer Software Servo Tensile Compression
Universal Testing Machine
Model: iPT-1136
Application:
iqualitrol double pillars iPT-1136 computerized servo pull pressure
testing machine is mainly used for testing the mechanical
properties of metals, nonmetals, composite materials and products
by means of stretching, compression, bending, shearing and tearing.
At the same time, it can be used for testing and data processing
according to GB, ISO, JIS, ASTM, DIN and various standards provided
by users.
It is widely used in the inspection and analysis of materials in
the industries of aerospace, machinery manufacturing, electric
wires and cables, rubber plastics, textile, building materials,
household appliances, etc.
Key Features:
High Performance
The machine structure adopts the interstitial ball screw and the
high stiffness guide column, which improves the load efficiency and
the structural rigidity.Adopt full digital ac servo system to
ensure high transmission efficiency, smooth transmission, low
noise, speed accuracy can be controlled within ±0.2%;
High Precision
Imported high-precision sensor, effective measurement range 0.5% ~
100%F.S, the comprehensive accuracy is better than 0.085%
Standardized
Fixture connection standardization, can quickly replace various
test fixture;
Highly Intelligent
Professional software intelligent control interface, automatic
parameter setting, working state control, data acquisition and
processing analysis, results display and print output;
Simple Operation
Click the mouse one-button control, one-button output test report,
no need for tedious education and training;
Technical Specifications:
| Model | iPT-1136 |
| Capacity | 500, 1000, 2000, 5000kgf, choose one of them |
| Software | Windows professional software |
| Force Accuracy | ±0.5%(GB/T 16491-2008) |
| Force Resolution | 1/100,000 |
Measurement Range | 0.5~100%F.S |
| Deformation Display Accuracy | ±0.1% |
| Test Speed | 0.5～300mm/min,free set |
| Test Travel | Max 1000mm,include fixture/grip |
| Effective Test Space | Front back no limit,left right 400mm |
| Unit Switch | A variety of measurement units including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button,
program strength and elongation setting, test piece failure |
| Special Function | Tensile holding, compress holding, tensile fatigue , compression fatigue ( software need updated) |
| Standard Configuration | Standard fixture 1 pair, software and data line 1 sets, 1 sets of
equipment power supply, operating instructions user manual, 1
product certification , 1 product warranty card |
| Optional parts | Business computer , printer , various test grips |
| Size | About 76×50×175cm(W×D×H) |
| Weight | About 350kg |
| Motor | AC servo motor |
| Power Supply | 1PH,AC220V,50/60Hz,10A or as specified |
Software specification:
Windows platform, parameter setting all click, simple operation;
Single screen operation, no screen switching;
Software interface with simplified Chinese, traditional Chinese and
English three languages, easy to switch;
Can test the form mode by itself.
Test data can be directly called in the main screen;
With a variety of units of measurement, the metric system can be
switched;
The data of multiple curves can be compared simultaneously.
With automatic return function;
Automatic correction function;
Function of custom test method.
Test data operation and analysis function;
Automatic magnification to achieve the most appropriate size of the
graphics;
It can be used for tensile test, compress test, bending test,
stripping test, tension test, pressure test and fatigue test.
Professional test software conforms to GB228-87, GB228-2002 ...more
than 30 countries’ standard regulations, at the same time,
according to GB, ISO, JIS, ASTM, DIN, and provide a variety of
standard test and data processing, and good extensible.
